  Flexo printing machine DH-ROC series   Current Position:Home » Flexo printing machine DH-ROC series
DH-ROC flexo printing machine
  • Application object: wrapping paper, paper bag, paper carton, milk bag, plastic flexible packaging, etc.
  • Paper used: coated paper, cardboard, light weight coated paper, kraft paper, paper plastic composite material, BOPP, PET, etc.
  • Main characteristics: full servo control; more stable printing effect; sleeves for plate cylinder and anilox roller to achieve rapid changeover of printed materials; turret-type unwinder and rewinder for automatic paper splicing to achieve high-speed stable and improve efficiency of the whole machine;
  • Details
  • Parameters
  • Sample
  • Video Demo

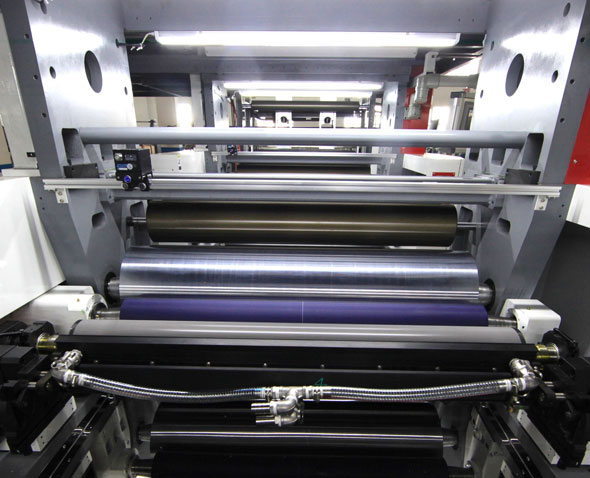

  • 1、Sleeve technology, quick job change

    Adopts sleeve technology of plate cylinder and anilox roller (optional) to achieve fast job change.

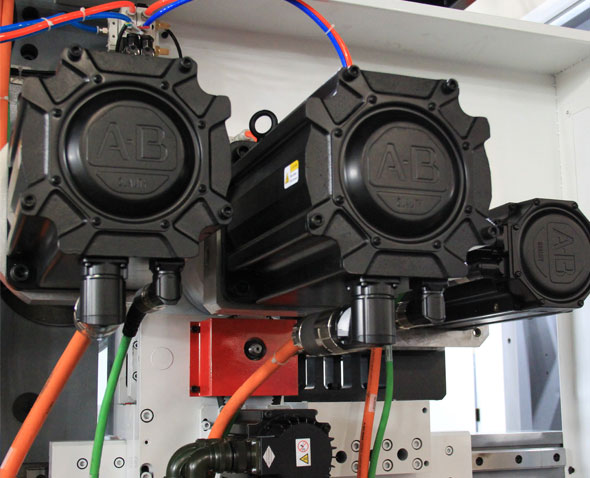

    2、Gearless drive system

    Each printing station is driven by 8 servo motor to avoid gear wearing when running at high speed.

    Thanks to the gearless drive system, ROC has a great job repeatability. It can record and recall: register position, pressure setting, tension etc.

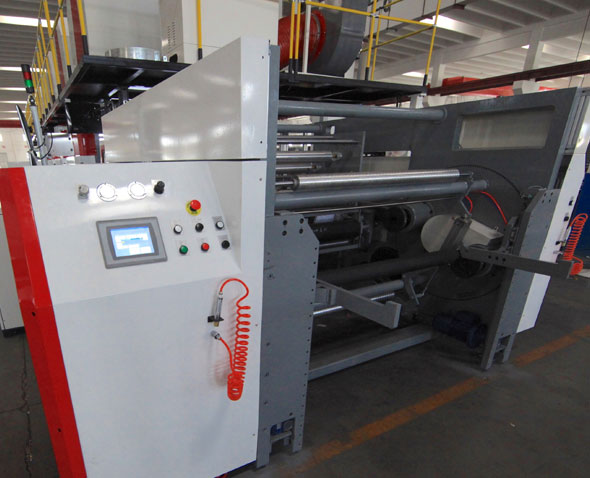

    3、Turret auto splicing system

    ROC adopts turret auto splicing system on unwinder and rewinder. The unique design can guarantee splicing stability.

    4、High efficiency hot air drying unit

    After printing, substrate goes up and pass the  high efficiency drying unit to achieve high running speed. Cover of drying unit can slid out for substrate threading and hot air is recycled to lower down power consumption.

    5、Inline 100% quality inspection system

    ROC adopts inline quality inspection system. Once defect is found, system will give an alarm and record relevant information.

    6、Chamber inking system

    The chamber doctor blade system can guarantee inking stability. Meanwhile, together with inline anilox roller cleaning system (optional), it can greatly lower down cleaning time and cost.

    7、Intelligent control system

    * Register position record/recall
    * Printing pressure record/recall
    * Tension record/recall
    * Pre-register function
    * Pressure compensation when running at high speed.
    * Inline quality inspection system
    * Auto register system
    * Closed-loop tension control
